Grinding Mill Processing
Various milling machines are used in mining grinding plant, such as the ball mill, Gulin MTM series grinding machine, MTW series grinding machinery, MCF coarse milling machine, LM series vertical grinding mill and Hammer mill, etc.

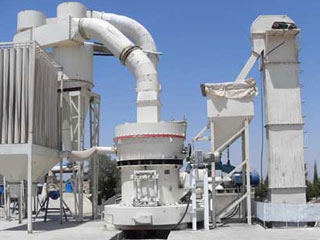

To the commonly grinding machinery, the mining process contains the several stages; take MTM series grinding machinery (MTM160) for example:
Firstly, the mining will be lift by the elevator and then the subsequent vibrating feeder feed the mining aggregates to the MTM160 mining milling machine.
When the mining are fed to grinding mill, it will be ground between the roller and ring. With the help of blower, the small mineral powder will fly up and be classified by the classifier on the top of the mining grinding mill, the standard ones will pass through the classifier and the big ones will leave in the mineral milling machine for grinding again. The qualify mining powders will be sent to the collector because of the sub pressure environment. Finally they will be discharged from the special discharge opening. Also the fines that mixed with very little fineness will be purified by impulse duster and discharged by the blower and muffler.
Gulin Professional solutions, high-quality products, and customer-oriented service have paved the way for Gulin’s successful entry into the world market.
If you may are interested in investing in mining grinding industry, just be free to contact us. You can get the price and specification immediately by chatting with our engineer on-line. Also, you can leave your requirements; we will answer you by email in within 24 hours.
