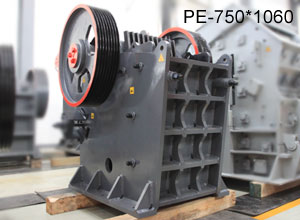

PE-750*1060 jaw crusher
PE-750*1060 jaw crusher is suitable for even hardest rock and recycle materials. In stone crushing plant, for example, our jaw crushers are able to work continuously with reliable quality and crushing economy. Our jaw crusher machine is suitable for both stationary and mobile crushing process.
Features:
- High ratio of crushing,
- Even final size,
- Simple structure,
- Reliable working condition,
- Easy maintenance,
- Low operating cost.
Working Principle
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Specifications:
| Jaw Crusher PE-750 x 1060 key Specifications: | |
| Feed Opening(mm) | 750×1060 |
| Max Feeding Size(mm) | 630 |
| Adjustment of Range Discharging Opening(mm) | 80-140 |
| Capacity(t) | 130-260 |
| Power(kw) | 110 |
| Weight(t) | 28 |
| Overall Dimension(mm) | 2620x2302x3110 |
Note: This specification is just reference, any changes are subject to the products.
